Polyether_Polyether Polyol Knowledge 3,4,9,10-tetracarboxylic dianhydride Perylene-3,4,9,10-tetracarboxylic dianhydride

3,4,9,10-tetracarboxylic dianhydride Perylene-3,4,9,10-tetracarboxylic dianhydride

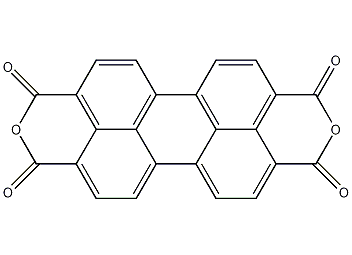

3,4,9,10-perylenetetracarboxylic dianhydride structural formula

Structural formula

Business number 03LQ
Molecular formula C24H8O6
Molecular weight 392.32
label

3,4,9,10-Perylenetetracarboxylic anhydride,

Pigment Red 224,

3,4,9,10-Perylenetetracarboxylic dianhydride,

Pigment Red 224,

PTCDA,

aromatic compounds

Numbering system

CAS number:128-69-8

MDL number:MFCD00006916

EINECS number:204-905-3

RTECS number:None

BRN number:57831

PubChem ID:None

Physical property data

1. Properties: Red flashing solid. Brown-red powder.

2. Melting point (℃): >300

3. Solubility: soluble in alkaline solution.

Toxicological data

This product is non-toxic.

Ecological data

None

Molecular structure data

1. Molar refractive index: 109.16

2. Molar volume (cm3/mol): 222.3

3. Isotonic specific volume (90.2K ): 712.1

4. Surface tension (dyne/cm): 105.1

5. Polarizability (10-24cm3): 43.27

Compute chemical data

1. Reference value for hydrophobic parameter calculation (XlogP): 4.5

2. Number of hydrogen bond donors: 0

3. Number of hydrogen bond acceptors: 6

4. Number of rotatable chemical bonds: 0

5. Number of tautomers: none

6. Topological molecule polar surface area 86.7

7. Number of heavy atoms: 30

8. Surface charge: 0

9. Complexity: 730

10. Number of isotope atoms: 0

11. Determine the number of atomic stereocenters: 0

12. Uncertain number of atomic stereocenters: 0

13. Determine the number of chemical bond stereocenters: 0

14. Number of uncertain chemical bond stereocenters: 0

15. Number of covalent bond units: 1

Properties and stability

Basic properties

Brown-red powder. Melting point>300℃. Soluble in alkaline solution.

This product is non-toxic.

Storage method

Packaged in a lined plastic bag and coated in a sack or woven bag. 25kg or 50kg per bag. Store in a cool, ventilated and dry place, protected from heat, moisture, sun and fire. Store and transport according to general chemical regulations.

Synthesis method

Tetracarboxylimide is obtained by alkali fusion from 1,8-naphthalimide, and then deamination is performed with concentrated sulfuric acid to remove water to form anhydride. Raw material consumption quota: 1,8-naphthalene anhydride (raw material for preparing 1,8-naphthalene imide) 2120kg/t, potassium hydroxide (96%) 6000kg/t, concentrated sulfuric acid 20000kg/t.

Purpose

Mainly used to synthesize perylene dyes and pigments, to produce advanced vat dyes, fluorescent dyes and advanced organic pigments, such as vat scarlet K, vat scarlet R, permanent red BL, etc., and also used in synthetic resins and plastics.
